CNT330 Full Automatic Multiplex IHC Stainer

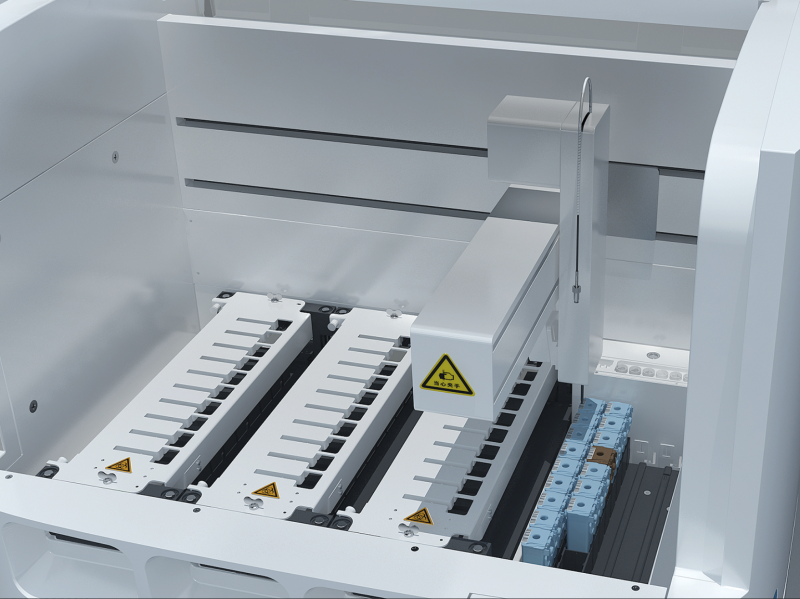

Optimize your IHC lab workflow with the CNT330-Automatic IHC Slide Stainer. This advanced system supports continuous operation, loading up to 30 slides across three independent frames simultaneously. Enjoy a fully automated process, including slice drying, deparaffination, antigen retrieval, and more, enhancing lab standardization and efficiency.
Monitor the entire stain process with precision, detecting dosage levels, timing, and abnormal behavior. Our green design features environmentally friendly solutions, minimizing hazardous waste treatment costs. Load up to 30 slides in 2.5 to 4 hours, with 30 independent heating platforms maintaining optimal temperatures. Customize reagent handling volumes for precise staining quality.
Chat
message
Quote
Product Features
-
Full-automatic
Baking, deparaffinization, antigen retrieval, blocking, detection, counterstain, for IHC, Multiplex IHC and ISH applications.
-
Reliable
Real-time monitoring and tracking; Identify labels by both camera and Infrared to avoid human error.
-
Multifunctional
Support IHC ISH mIHC ICC protocols
-
Economical
Dispense volume can be reduced to 80ul to reduce cost.
-
High Resolution
The innovative MircroStackerTM polymer technology ensures sensitive & specific detection.
-
Intuitive
Easy-to-use user interface. Visual cues on reagent volume and program status.
-
Flexible

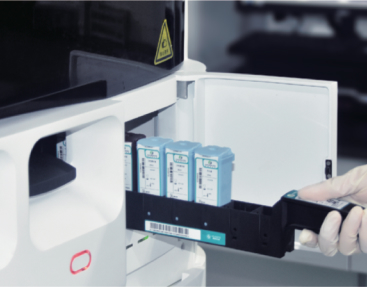

Ability to continuously load and unload slides during runs; Multiple devices can be controlled by a central computer; Customizable staining protocols; Hospital LIS system supported.
-
Eco-Friendly
Separate waste containers for hazardous waste (DAB waste) and non-hazardous waste. Help labs save both time and money spent on waste disposal.
Specification
General characteristics
|
|
|
|
Full-automatic: |
Baking, deparaffinization, antigen retrieval, blocking, detection, counterstain, for IHC, Multiplex IHC and ISH applications. |
|
Intuitive software interface: |
Visual monitoring of reagent volume, running time, fault message. |
|
Waste Separation: |
Non-toxic deparaffiniation solution. Separate waste containers for hazardous waste (DAB waste) and non-hazardous waste. Help labs save both time and money spent on waste disposal. |
|
Slide Capacity: |
3 trays, 30 slides, 10 slides per tray; |
|
Turnaround Time: |
2.5hrs – 4hrs |
|
Multifunctional: |
Support IHC、 ISH、mIHC、ICC protocols |
|
Temperature control: |
30 individual heating units, slides can be heated up to 100º for antigen retrieva |
|
Dispense volume:
|
Dispense volume can be adjusted between 80ul – 120ul for optimal staining results. |
|
Reagent container capacity: |
7ml and 30ml |
|
Number of reagent container spots: |
36 |
|
Bulk liquid container: |
2.5L |
|
Waste containers: |
2.5L / 18L |
|
Fluid probe: |
PTFE coated titanium alloy |
Environmental requirements
|
|
|
|
Operating temperature: |
5Co ~ 35Co (41F ~ 95F) |
|
Maximum heating energy output: |
1200VA |
|
Dimensions (L x W x H): |
960mm x 720mm x 1608mm |
|
Weight: |
300KG |
Electrical parameters
|
|
|
|
Voltage and Mains frequency: |
AC 110V/60Hz or AC 220V/50Hz |
|
Power consumption: |
1200VA |
More Info
MicroStackerTM – The Dedicated Detection System
The innovative MicroStackerTM technology allows for the orientation-controlled attachment of Fab’ fragments of IgG on the poly-HRP core based on micro-polymer scaffolds.
The proprietary Fab’ labeling methods avoids the occasional blocking of the antibody binding site during the bioconjugation process, thus increase the sensitivity of the polymer.
Biotin-free detection eliminates background staining due to endogenous biotin.
